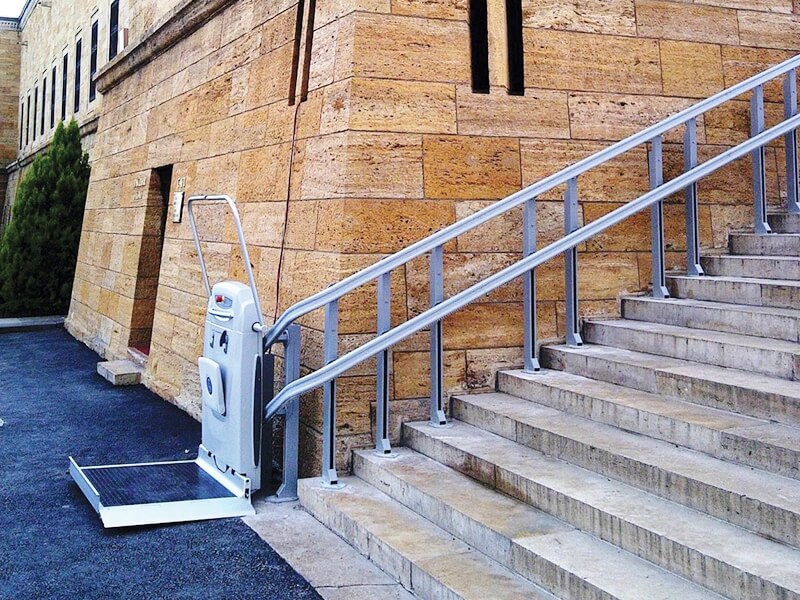

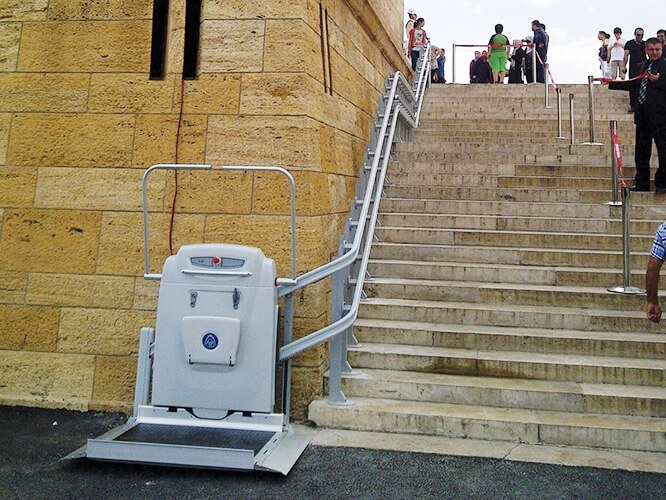

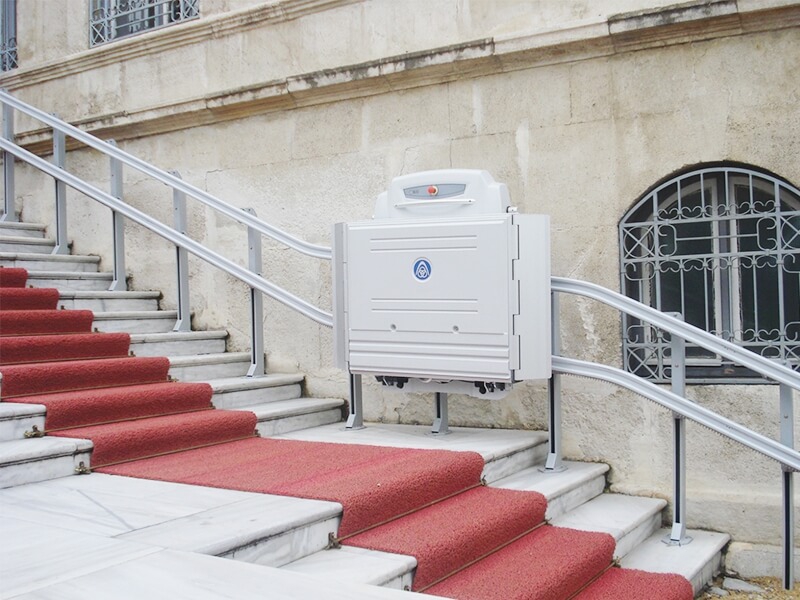

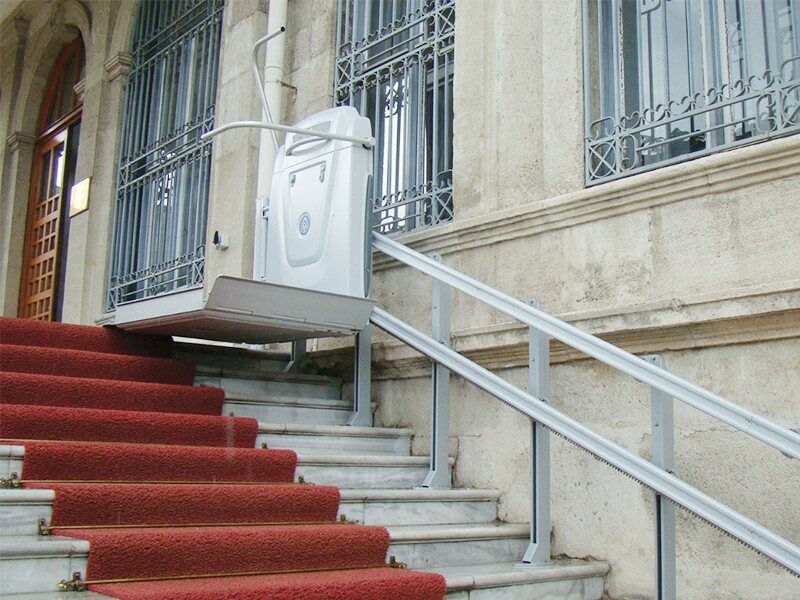

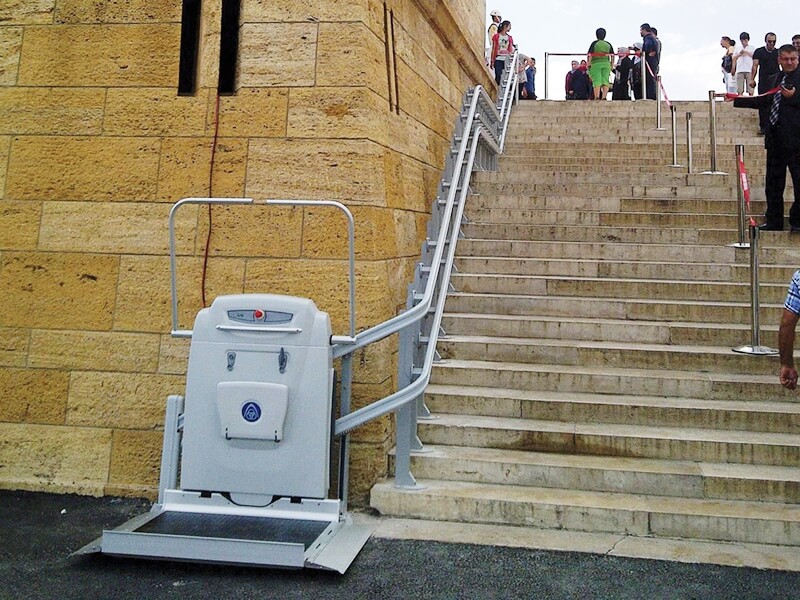

Stair Curved Type Disabled Platform Lifts

Technical Specifications

Application It can be applied indoors and outdoors with variable slope or curved staircase.
Carrying Capacity 300 Kg
Speed 0,07 m/s  standard speed 0,13 m/s  faster speed and smooth drive (optional)
Stair Width 1500 mm
Lower Landing 1700 mm
Access 180º
Rail Consists of RAL 9006 epoxy painted double aluminum profile
Rail Connection With metal feet to the floor or connection consoles to the wall
Dimensions (mm) (LxP) With dimensions starting from 650 x 860
Platform Structure Galvanized steel and aluminum with PVC coated
Platform Colour RAL 7047
Type Automatic opening and closing platform, with protection arms and access ramps
Floor Controls Up / Down command by pressing continuously with ergonomic key
Platform Controls Ergonomic hard-pressed command key; Emergency stop button; Locking
Power 230V, single phase, 50HZ , 16A
Voltage 24V
Max.Power 0,75kW
Drive System Top mounted system
Safety Speed limiter, constant pressure commands, anti-crush and anti-impact on platform, anti-jamming safety arrangement, double electrical circuit protection; emergency stop button; locking
Standard Machine router 2006/42/EC , EN81-40:2009
Optional Remote control, anti-power system, folding eat
