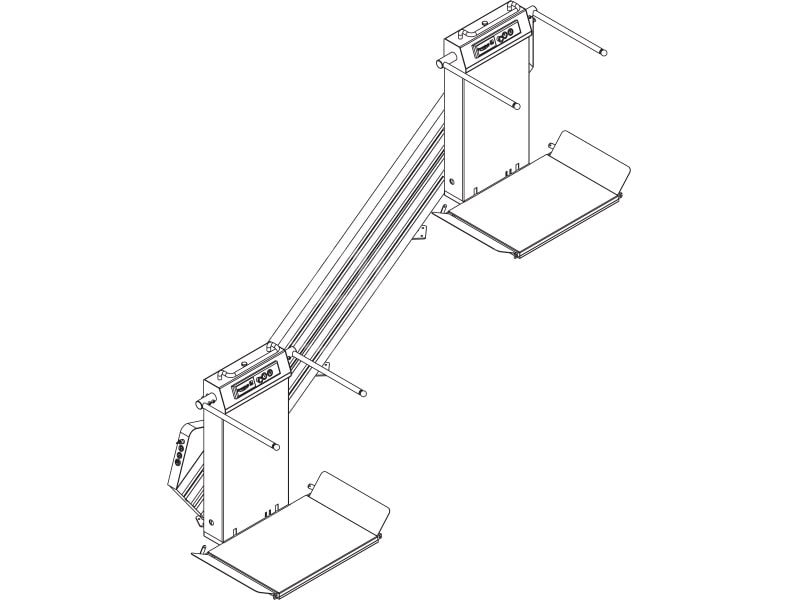

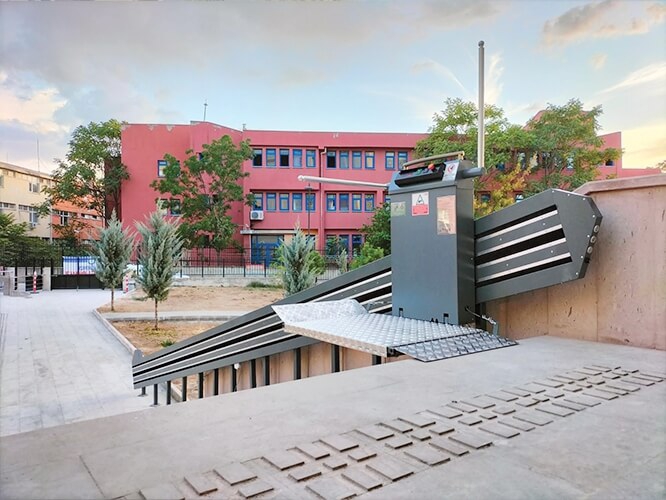

Stair Straight Type Disabled Platform Lifts

Application	Straight Stairs / Indoor-Outdoor
Drive Type	Gear System
Carrying Capacity	225 kg
Working Speed	0,07 / 0,13 mt/sec
Rail System	Linear Guideway System

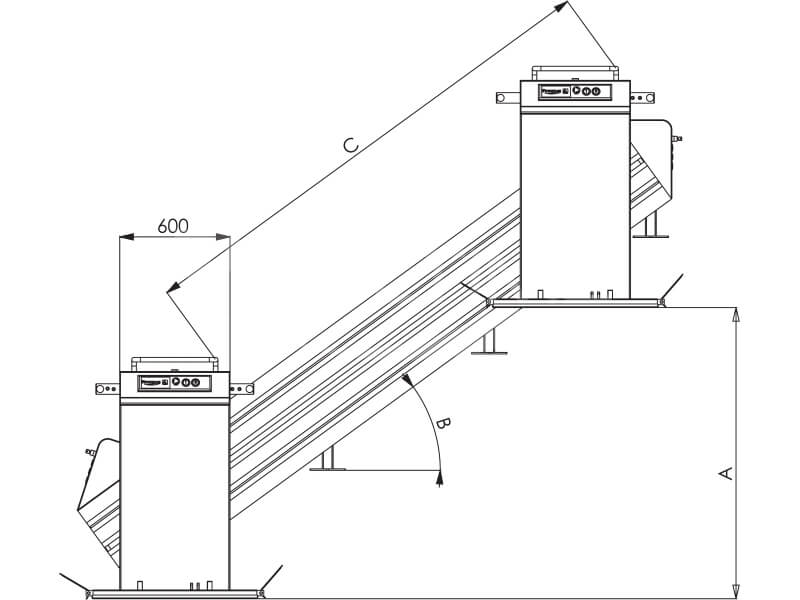

Escalation Angle	45 Degrees
Table Closing-Opening	Fully Automatic
Safety Arm Mechanism	Fully Automatic
Table Ramp	Fully Automatic
Controls	Call by switch at stops, button for movement on platform and ground. Emergency stop button
Safety System	Anti jamming switch system under the table
Main power requirement	220 V AC - 50 Hz - Single Phase

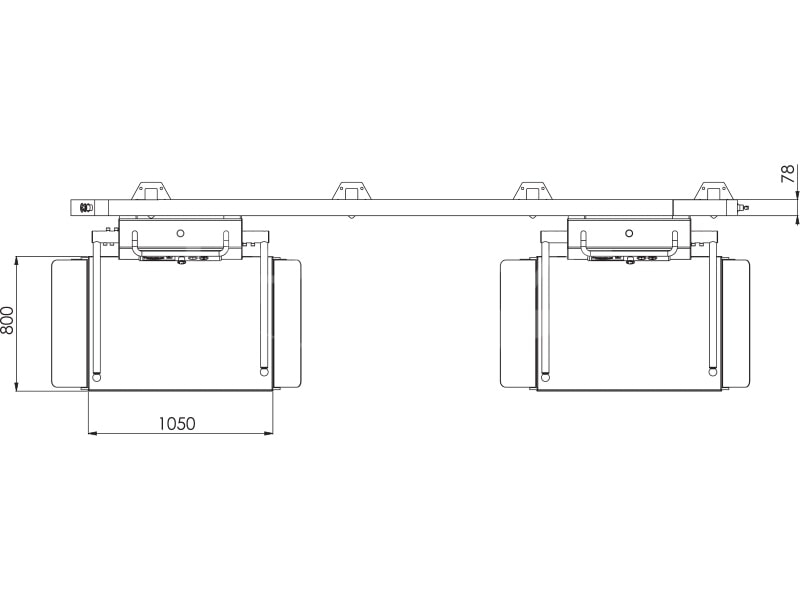

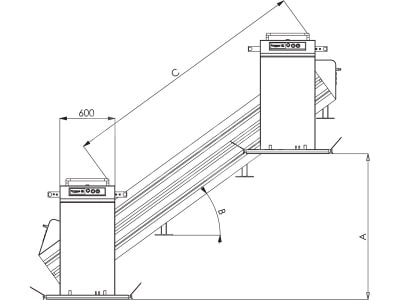

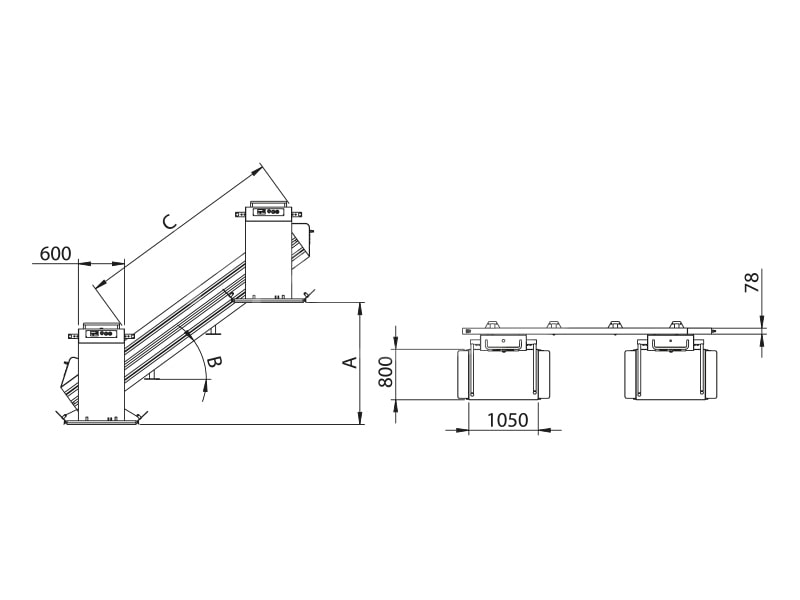

Platform Internal Dimensions	800*1050 mm / (Special Dimension)
