Disabled Elevators
Open Type Disabled Platform Lifts
Technical Specifications
| Drive Type | Hydraulic / Screw |
| Carrying Capacity | 315 kg |
| Maximum Travel Distance | 3 mt |
| Working Speed | 0,15mt/sec |
| Platform Internal Dimensions | 900*1400 mm / (Special Dimension) |
| Platform External Dimensions |
1400*1400 mm / (Special Dimension) |
| Pit | 100 mm |
| Door | Automatic Locking-Safety Switch (Optional) |
| Controls | Locked Controls On Floors And Platform Emergency Stop Button |
| Safety | Anti Jamming Switches Under The Table / Bellows (Optional) |
| Main power requirement | 220 V AC - 50 Hz - Single Phase |

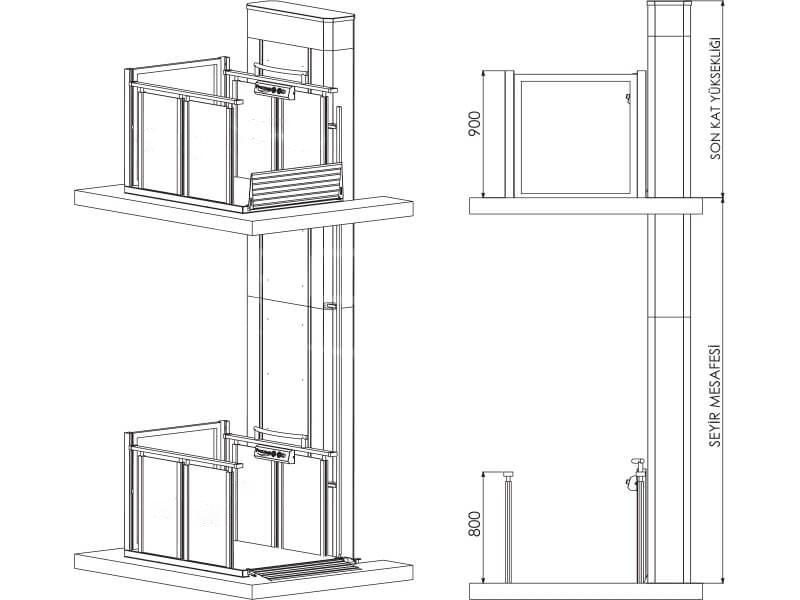

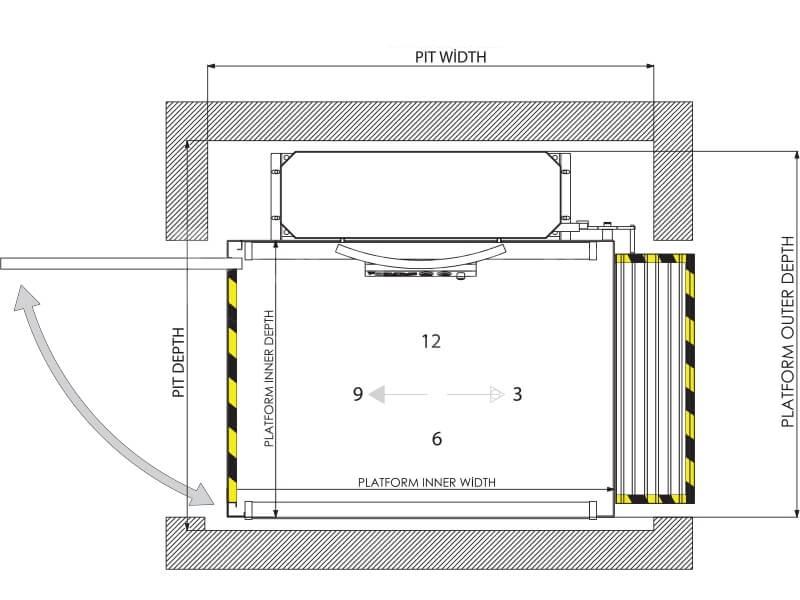

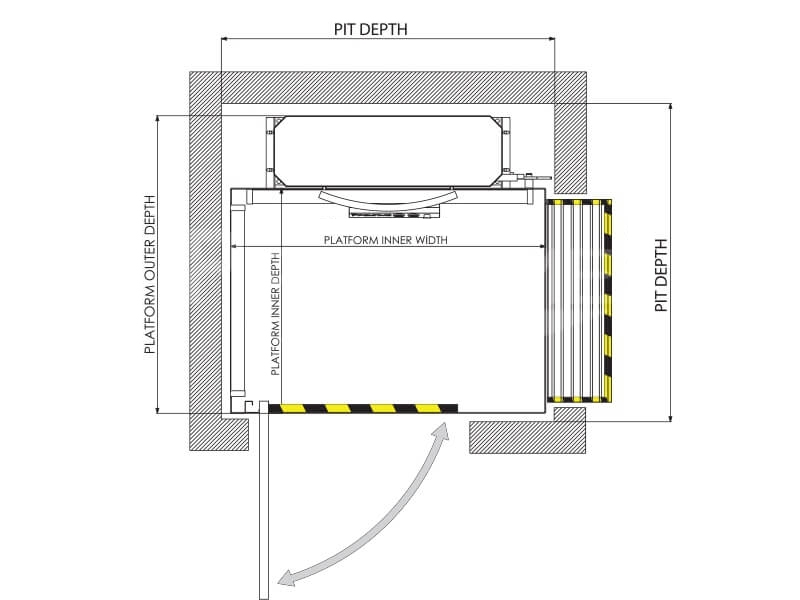

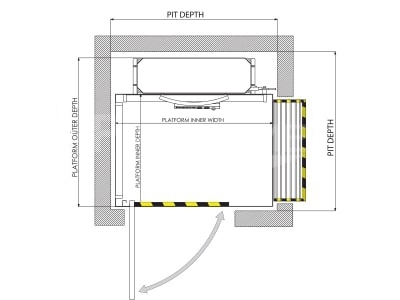

Technical Drawing
Profile Color Palettes
RAL 9005
RAL 9016
RAL 7012
RAL 7016
RAL 7032
RAL 7035
Glass Color Palettes
Transparent Glass
01
Blue
02
Fume
03
Bronze
04
Profile Properties
RAL Paint
Stainles Steel
Door Features
Circleslide Automatic Door
Manuel Door
Kabin Yükseklik
1000 m
Installation
Installation in 1-2 Days
Power Suply
220 - 380 v (AC)
Speed
0,15 m/s
Guarantee
2 years
Floor Number
2
Drive System
Hydraulic - screwed
Travel Height
3 m
