Disabled Elevators

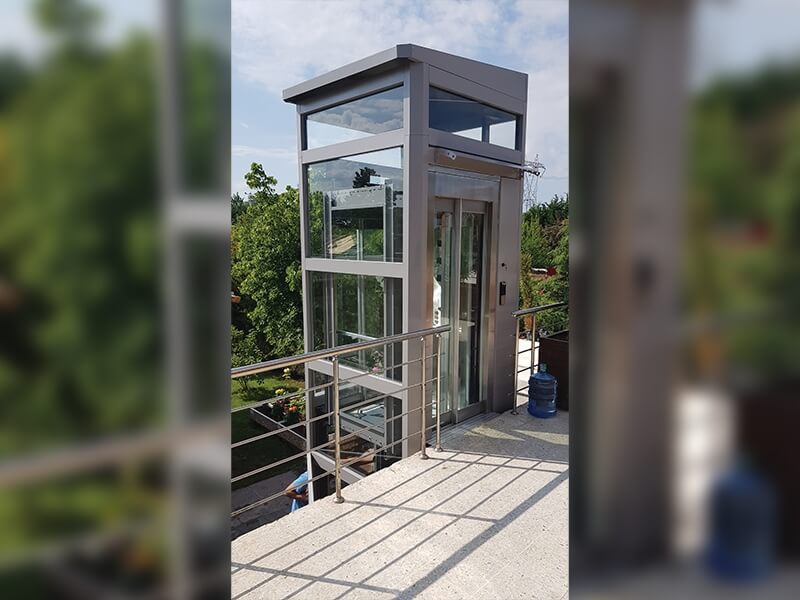

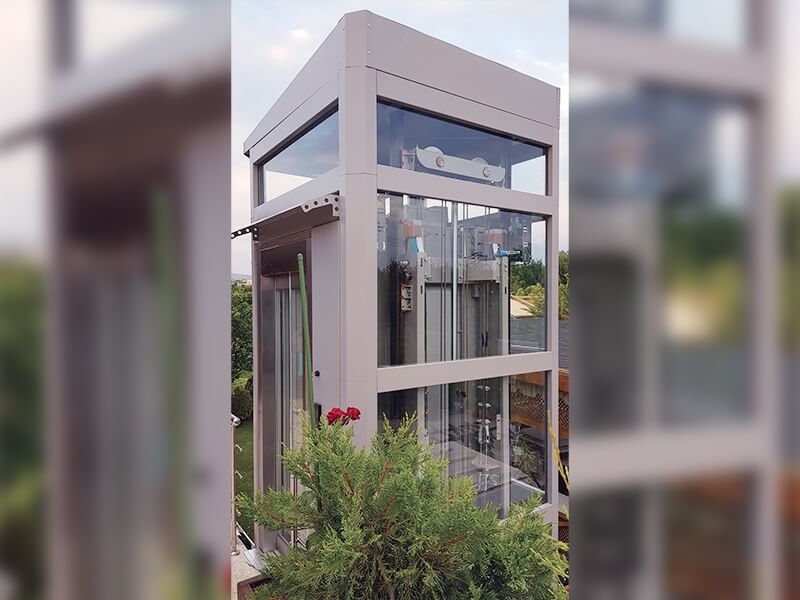

Cabin - Telescopic Closed Type Disabled Platform Lifts
Technical Specifications
| Drive Type | Hydraulic / Worm Screw |
| Load Capability | 315 / 400 kg |
| Distance | 15 mt |
| Speed | 0,15 mt/sec |
| Platform Internal Dimensions | 1100*1400 mm / (Special Dimension) |
| Platform External Dimensions | 1600*1600 mm / (Special Dimension) |
| Pit | 120 mm – 150 mm – 250 mm |
| Door | Fully Automatic |
| Emergency Rescue System | Ups / Manual |
| Announcment System | 3 Languages / Turkish, English, Arabic |
| Intercom System | Available |
| Main power requirement | 220 V AC - 50 Hz -Monofaze / 380 V AC - 50 Hz -Three Phase |

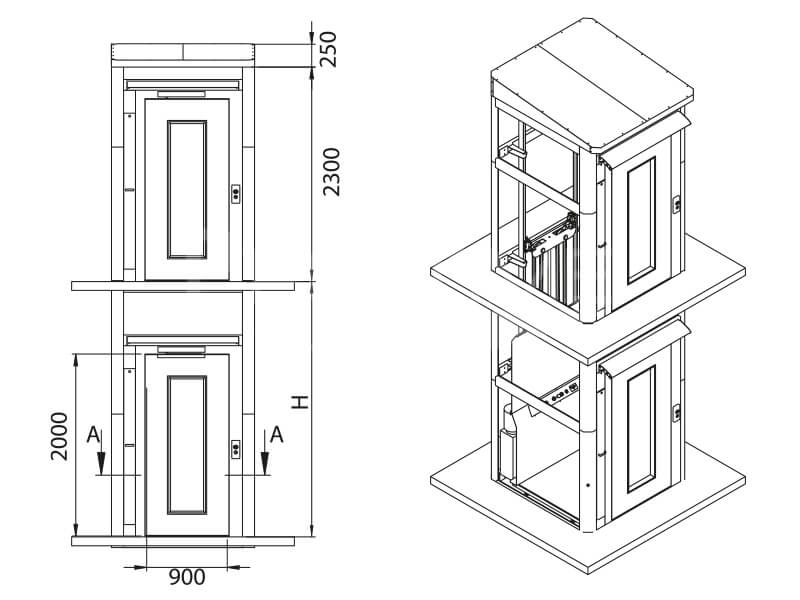

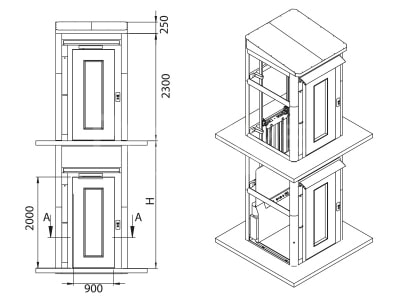

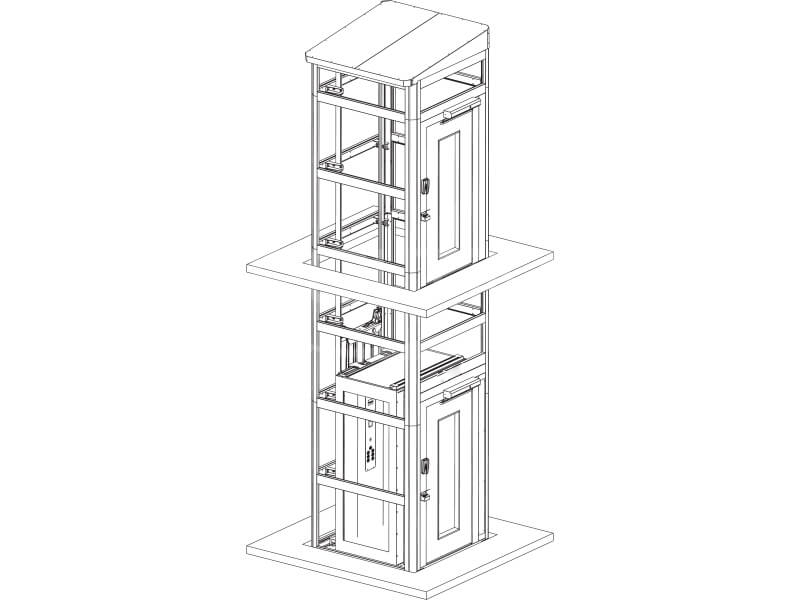

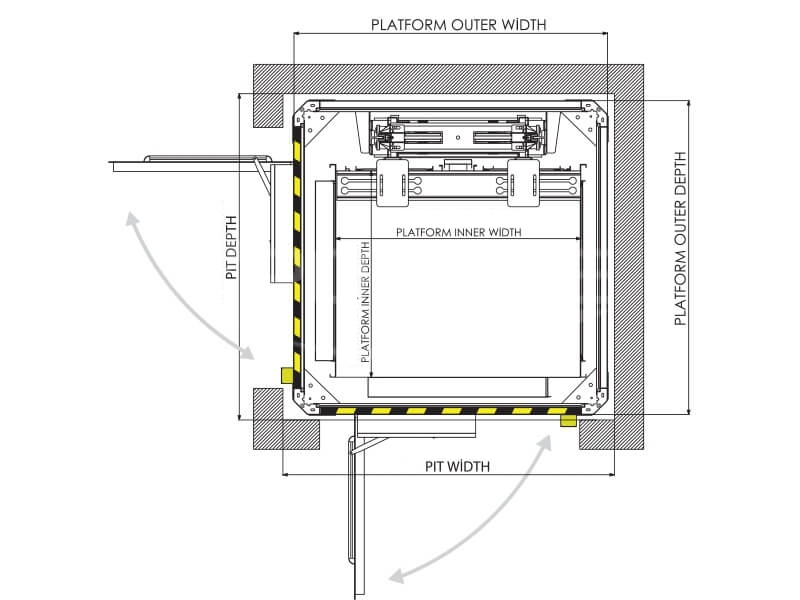

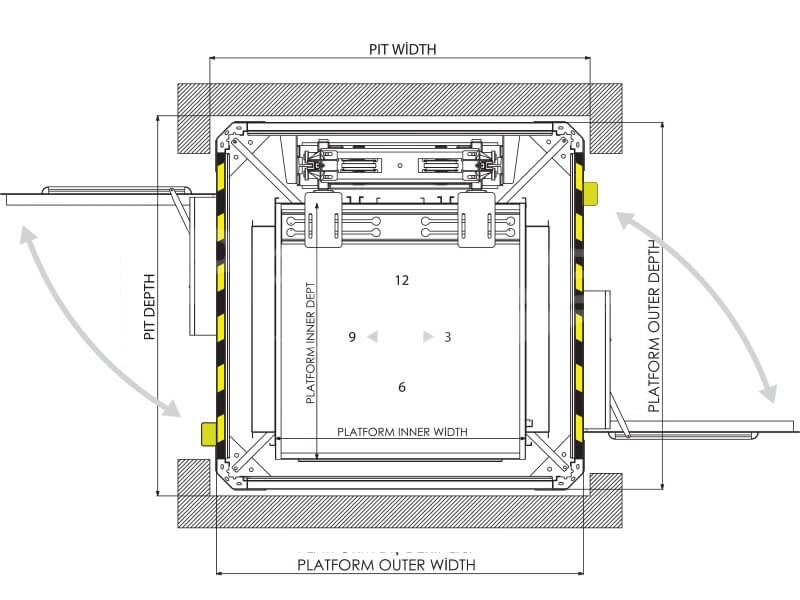

Technical Drawing
Profile Color Palettes
RAL 9005
RAL 9016
RAL 7012
RAL 7016
RAL 7032
RAL 7035
Glass Color Palettes
Transparent Glass
01
Blue
02
Fume
03
Bronze
04
Profile Properties
RAL Paint
Door Features
Circleslide Automatic Door
Telescopic Door
Manuel Door
Cabin Height
2.500 mm
Installation
Installation in 4 Days
Power Suply
220 - 380 v (AC)
Speed
0,15 m/s
Guarantee
2 years
Floor Number
6
Drive System
Hydraulic - screwed
Travel Height
15 m
Cabin Options
Platform
