Disabled Elevators
Home Disabled Platform Lifts
Technical Specifications
| Driver System | Hydraulic / Screw System |
| Load Capability | 250 kg / 2 Persons |
| Distance | 9 mt |
| Speed | 0,15 m/sec |
| Platform Internal Dimensions | 750*850 mm / (Special Dimension) |
| Platform External Dimensions | 1080*1060 mm / (Special Dimension) |
| Pit | None |
| Door | Automatic Locking - Safety Switch |
| Emergency Rescue System | Ups / Manual |
| Announcment System | 3 Languages / Turkish, English, Arabic |
| Intercom System | Available |
| Main power requirement | 220 V Ac - 50 Hz -Monofaze |
| Installation Time | 2 Days |

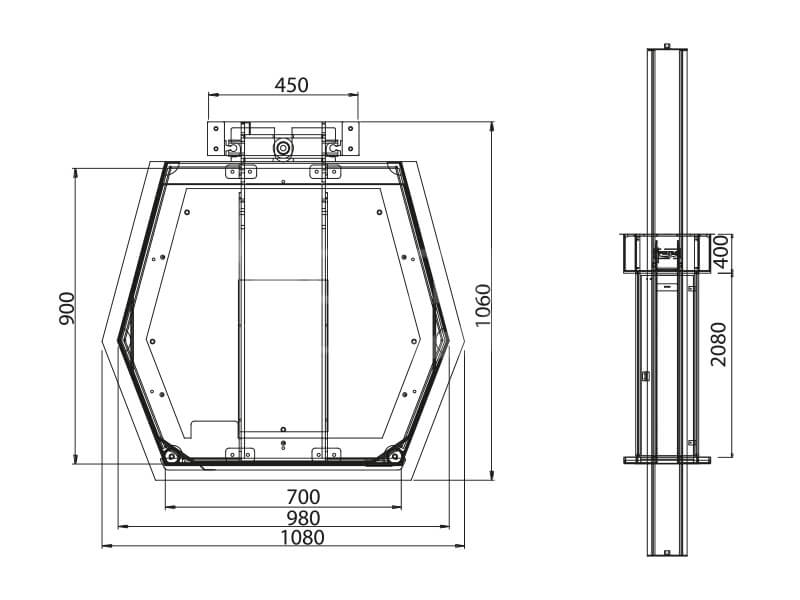

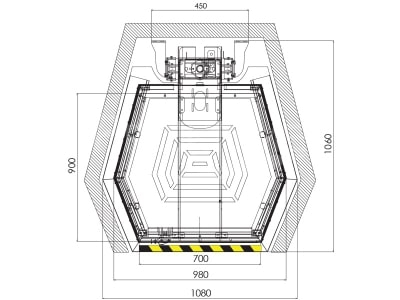

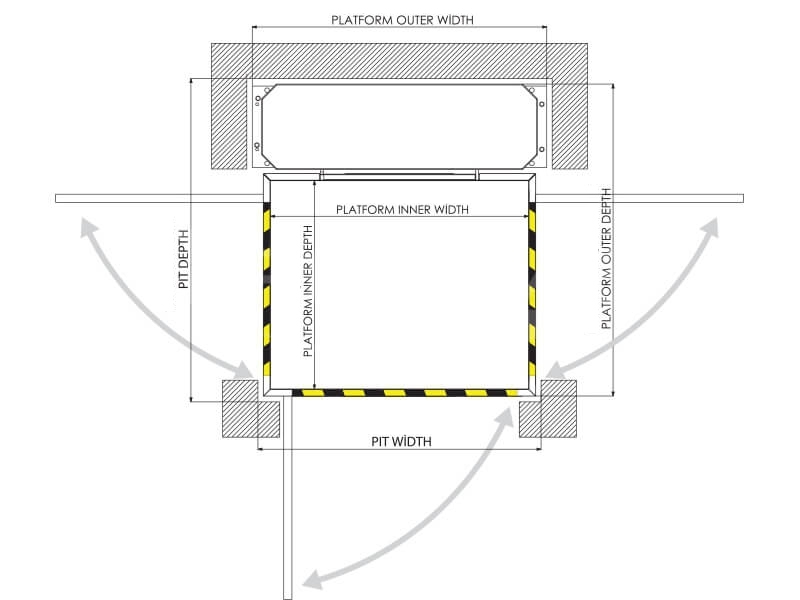

Technical Drawing
Profile Color Palettes
RAL 9005
RAL 9016
RAL 7012
RAL 7016
RAL 7032
RAL 7035
Glass Color Palettes
Transparent Glass
01
Blue
02
Fume
03
Bronze
04
Profile Properties
RAL Paint
Stainles Steel
Door Features
Full Height Glass Door
Half Height Glass Door
Total Height
2.300 mm
Installation
Installation in 2-3 Days
Power Suply
220 - 380 v (AC)
Speed
0,15 m/s
Guarantee
2 years
Floor Number
4
Drive System
Hydraulic - screwed
Travel Height
9 m
